Piling Roller Bits
Roller Bits are essential tools in foundation drilling, designed to penetrate low-fractured, hard rock formations with UCS ranging from 60 MPa to 350 MPa.
Originally derived from the Tricone roller bit used in oil and gas drilling for over a century, DRILLNOVA Roller bits have been adapted for foundation drilling. Unlike traditional Tricone bits, which are designed for full-face drilling with efficient cuttings removal and cooling via drilling mud, Roller Bits in foundation drilling are optimized to cut only an annular space. Given the unique challenges of piling applications, our Roller Bits feature significant upgrades to ensure optimal performance in these demanding conditions.
Proven Performance
Long lifespan in hard formations
Precision Engineering
Advanced design & strict QC
Global Performance
Applied in major projects worldwide
Custom Solutions
Tailored roller bits for your rig
Available Roller Bit Series
ROLLER BIT DATA SHEET
| Model Cone | Cone Type | Cone (Teeth Dia.×Qty-Dia.) | Body Type | Connect | Selection Advice |
| MH-1 | 3rd | 13.7×52-134 | 3rd | Welding | Smaller piles / moderate rock; cost-effective in construction |
| MH-2 | 3rd | 14x52-139 | 1st | Welding | Widely used in oil & gas; stable penetration in medium- hard formations |
| MH-3 | 3rd | 14x52-139 | 4th | Welding | For tough, abrasive rock; +20% faster drilling in field tests |
| MH-3H | 3rd | 17x74-191 | 4th | Qui-Change | Large-diameter boreholes (OD>2000mm); robust torque capacity |
| MH-3R | 3rd | 14x52-139 | Holder | Qui-Change | Holder-based quick-change; easy on-site swaps, minimal downtime |
| MH-3B | 3rd | 14x52-139 | Bolts | Qui-Change | Bolt-type quick replacement; extra stability for specialized core barrels |
Additional Support
Select Roller Bit
Selecting the appropriate tooth type and quality based on the geological formation is crucial for optimizing drilling efficiency.
Improve Tool Design
A well-designed core barrel enhances debris removal, significantly improving drilling efficiency.
Welding Instruction
Correct roller bit placement and welding accuracy are vital for achieving the desired drilling results.
Operation Tips
Proper control of drilling weight and rotating speed directly impacts penetration rates and roller bit wear.
Roller Bit Guidance
Customer Cases

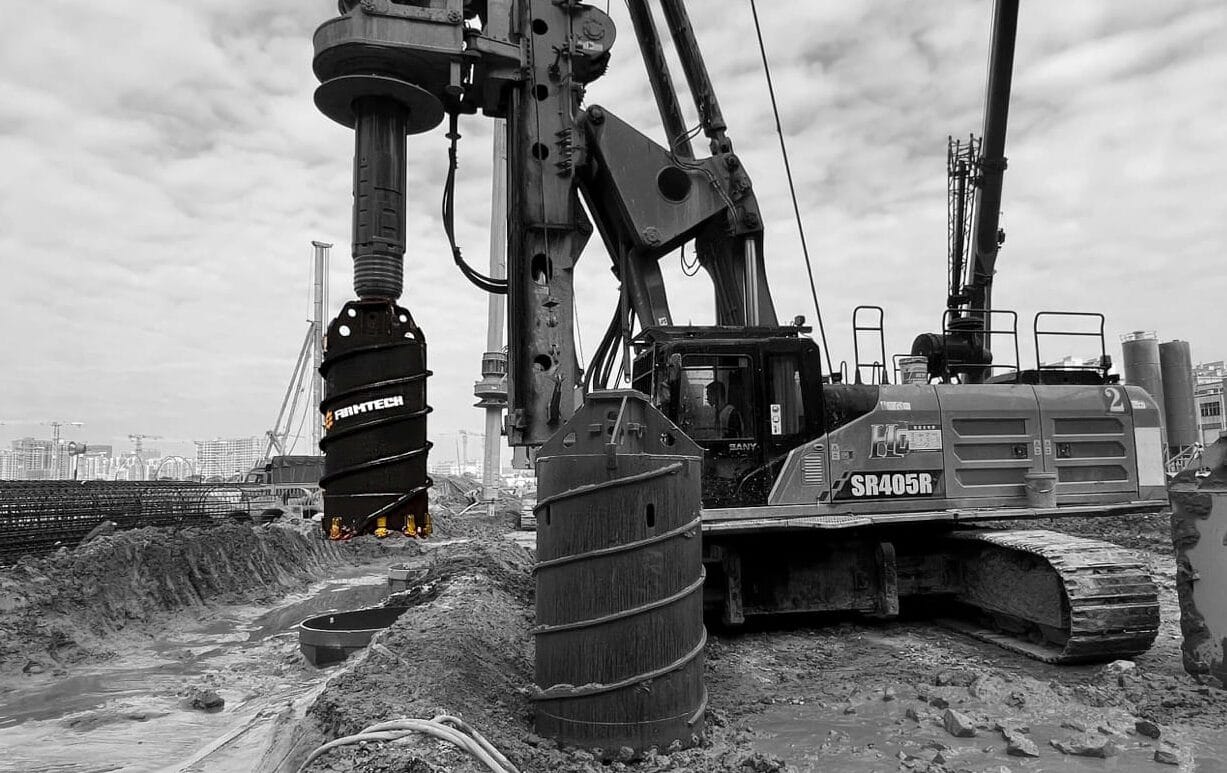

1200mm Roller Bit Core Barrel - Guangdong
Roller Bit Type: MH-3 Conical
Rock socketing length 1.5D
Drilling rig: SR405R
Penetrating rate: 0.7m/h due to part rock weathered
1800mm Roller Bit Core Barrel - Wuhe Subway Station
Roller Bit Type: MH-3 Conical
Rock socketing length: 35m+
Drilling rig: Zoomlion 550L Pile Length: 95m
Core barrel Height: 3.5m
1200mm Roller Bit Core Barrel - Chengdu
Roller Bit Type: MH-3R Conical
Rock socketing length 2D
Drilling rig: XR360
Penetrating rate: 0.5m/h
Pile length 38m
1200mm Roller Bit Core Barrel -Guangzhou
Roller Bit Type: MH-3 Conical
Rock socketing length 2-5m
Drilling rig: XR360
Penetrating rate: 0.4m/h
Pile length 30m
1200mm Roller Bit Core Barrel - Aisa
Roller Bit Type: MH-3 Conical
Rock socketing length 2D
Drilling rig: Bauer BG28
Penetrating rate: 0.5m/h
Pile length 25m
2500mm Core Barrel with Roller Bit - Middle east
Roller Bit Type: MH-3H Conical
Rock socketing length 1.5D
Drilling rig: Bauer BG30
Penetrating rate: 0.4m/h
Pile length 32m
DRILLNOVA specializes in high-performance HDD drilling tools.
Reduce downtime, boost drilling efficiency.
Download our Foundation Tools catalog to find Roller Bits built for reliable performance.
